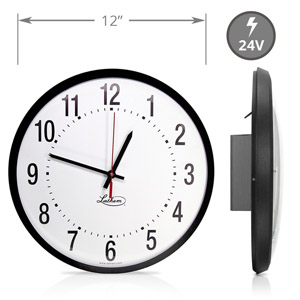

Lathem SS12RFA 12" Round Analog Slave or Child Clock
12" Round 24VDC or 110VAC
Dimensions:
- Dial Dimensions: 12.12” x diameter
- Outside Dimensions: 13.12” x diameter
- Overall Projection from Wall: 1.62”
- Center of clock below center of outlet box: Approx. Same
Specifications:
- Face: Arabic 1-12
- Case: 22-gauge steel
- Color: Charcoal Gray
- Motor Input Voltage: 24V AC 50Hz
- Motor Input Frequency: 60Hz (50Hz or V DC optional) for SS
- Motor Input Power: 4 Watts
- Coil Input Voltage: 24V
- Coil Input Frequency: 50Hz
- Connector: Mating female connector is provided with approximately 18 inches of wiring.
- Sweeping second hand(3 wire) or minute impulse correction (2 wire)
Master Clocks - GPS, PTP, IRG-B, lathem master clocks
Lathem Wall Clock Specifications
There are options in this list, please call before ordering
Shape: Round, 10", 12" and 15"
Mounting: Surface Mount (about 1.5" out of the wall)
Semi-Flush (about 2" out of the wall) or Double (Ceiling or Wall)
Clock Face: A = Arabic Dial (1 - 12) B = Arabic Dial (0 - 23)
Correction: Manual for Independent. 115VAC (24VAC optional) for SS 60HZ
(50HZ optional) for Independent and SS
Voltage: 115VAC, 24VAC or 24VDC for SS, 24 to 36VDC for ISC
Coil Input: Power cord set for independent, polarized quick disconnect connector
plug with socket pins.
Connector: Mating female connector is provided with approximately 18 inches of wiring
for SS and IS
SS12RFA-2G1
Physical dimensions of Lathem wall clocks
Semi-Flush Mounts: 10" 12" 15"
Dial Dimensions: 10.2" 12.12" 15.75"
Outside Dimensions: 11.12" 13.12" 16.75"
Overall Projection from wall: 1.75" 1.62" 1.75"
Synch ship weight: (lbs): 6.0 11.9 14.3
Impulse ship weight (lbs): 6.0 10.2 12.6
Surface Mount 12" 15"
Dial Dimensions: 12.12" 15.75"
Outside Dimensions: 14.5" 18.25"
Overall Projection from wall: 3.87" 4.0"
Center of clock below center of outlet box: 4.62" 6.5"
Synch ship weight (lbs) 9.5 11.6
Impulse ship weight (lbs) 7.5 10.4
