LinorTek Netbell Web-based Bell System
The Netbell was designed as an easy-to-used, scalable automated bell system. Developed in concert with school administrators who were looking for a simpler and more effective way to control their school bells.
The system is an Ethernet I/O device which is build ton a TCP/IP platform tht can be installed anywhere in the network without need for a direct PC connection. The internal clock synchronizes with the NTP server for precise timekeeping. Users who have a complex bell schedule can import their existing schedule into the NetBell system using text format.
Easy-to-Install: Use Netbell as either a network device or a standalone device. Install the Netbell anywhere on the network. Use our "Discover" program to automatically locate your device within your network. A lot of work has gone in to making this program easy to learn, and LinorTek backs it with free technical support - from North Carolina, USA.
Flexible and Accurate Controls: The Netbell controller comes with a built-in real time clock with NTP automatic Internet time setting, providing you flexible and accurate control of when the bells ring. Format: HH:MM:SS, Sunday - Saturday.
Your schedules are safe: The built-in rechargeable battery can back up all of your settings in the event of power outage.
Fully Programmable:
Program up to 500 schedules and different ringing durations. It takes just a few minutes to customize your bell system to meet your unique requirements.

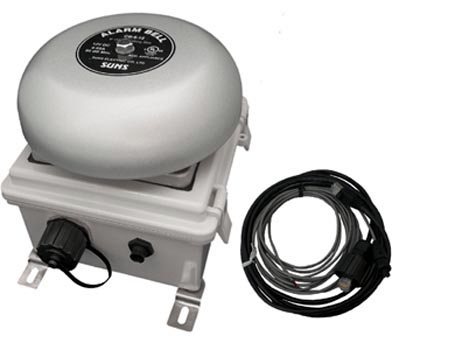

Netbell-K* and Netbell-KB** Specifications:
10M/100M RJ45 Internet interface with connection and activity LEDs
4 relay outputs, 1 FORM C 48 Volt Max (24VAC/DC 3A)
Status LEDs, (pulse, bootloader and locate)
Ethernet Bootloader - for server hardware code upgrade
Power: 12VAC (Optional)
* Bell: 6" 12VDC Die Cast aluminum enclosure, Volume: 86Db, IP24 rated minimum
** Buzzer" 4" Federal, 100DB
Enclosure: ABS, IP67 6"x 6" x 3.5" (150x150x90mm) - mounting hardware is included
Included accessories: 9' power cable, 9' CAT5 cable
On board temperature sensor, on board input voltage sensor
Working range: 0 to 70C -> 32 to 158F
Storage range: -40 to +125 Celsius
Humidity: 10% to 80%, non-condensing
Supported Protocols: HTTP HTTPS SMTP SNTP

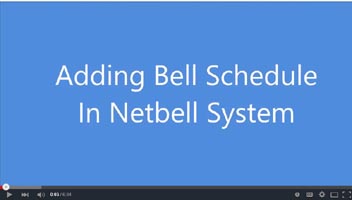

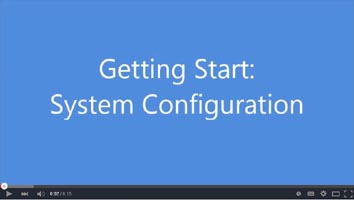

YouTube Videos: Click to Watch - on YouTube
